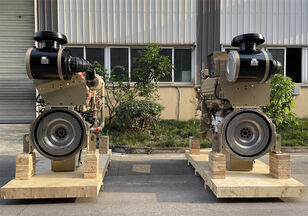

Cummins KTA19-M3 600 HP engine
Description
Engine power:600 HP (441 kW)
Number of cylinders:6
Engine type:in-line
Turbo
Fuel:diesel
Euro:2
Engine
Fuel:diesel
Turbo
Euro:Euro 2
Condition
Condition:new
Warranty::12 months
KTA19-M3 600 HP – General Information
Model: KTA19-M3 (600HP)
Type: 6 Cylinders in Line, 4 strokes
Displacement: 19 L
Bore * Stroke: 159 * 159
Net Weight (with flywheel & alternator): 2251 Kg
Overall Dimension: 1666mm*874mm*1377mm
Model: KTA19-M3 (600HP)
Type: 6 Cylinders in Line, 4 strokes
Displacement: 19 L
Bore * Stroke: 159 * 159
Net Weight (with flywheel & alternator): 2251 Kg
Overall Dimension: 1666mm*874mm*1377mm
Engine Configuration No.: D193080MX02
KTA19-M3 600 HP – Performance Data
Rated Power/Speed: 447 kW/600HP
Rated Speed: 1800 rpm
Rating Type: Continuous Duty
Max Torque/Speed: 2680 N.m @ 1400 rpm
Low Idle Speed: 650±25 rpm
High Idle Speed: 1815-2016 rpm
Fuel Consumption (Running Speed): 111.1 L/hr
KTA19-M3 600 HP – Technical Specification
Certification: CCS/IMO Certificates
Aspiration: Turbocharged/Aftercooled
Fuel System: Cummins Pressure Time (PT Pump)
Starting System: Electrical Start (24V)
Governor Type: Mechanical Control
Compression Radio: 13.8:1
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Sea water pump, Heat exchanger, Water cooled
