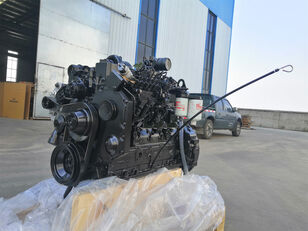

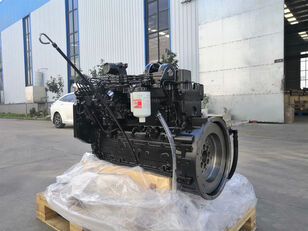

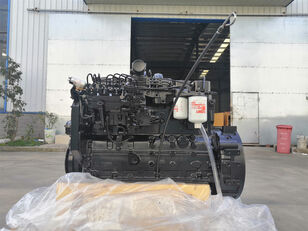

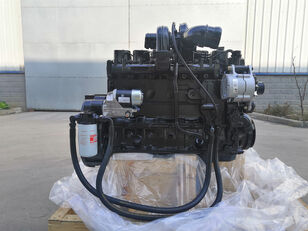

Cummins 6BTAA5.9-C150 engine
Description
Engine power:150 HP (110 kW)
Number of cylinders:6
Engine type:in-line
Turbo
Fuel:diesel
Euro1
Condition
Condition:new
6BTAA5.9-C150 – General Information
Model: 6BTAA5.9-C150
Type: 6 Cylinders in Line
Displacement: 5.9L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 443 Kg
Overall Dimension: 1100mm*750mm*988mm
Model: 6BTAA5.9-C150
Type: 6 Cylinders in Line
Displacement: 5.9L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 443 Kg
Overall Dimension: 1100mm*750mm*988mm
6BTAA5.9-C150 – Performance Data
Rated Power/Speed: 110 kW/150HP
Rated Speed: 1950 rpm
Max Torque/Speed: 718 N.m @ 1200 rpm
Fuel Consumption @ Rated Power: 217g/Kw.h
Max Continuous Running Altitude: 2000 m
6BTAA5.9-C150 – Technical Specification
Certification: Euro I
Aspiration: Turbocharged-Intercooled

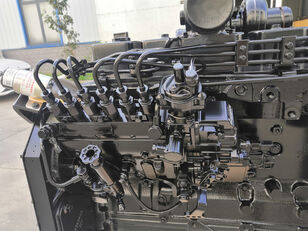

Fuel System: Wuxi Weifu A Pump/ RSV Govenor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Engine Cooling Fluid Volume: 10.4 L
Cooling Method: Water Cooled
